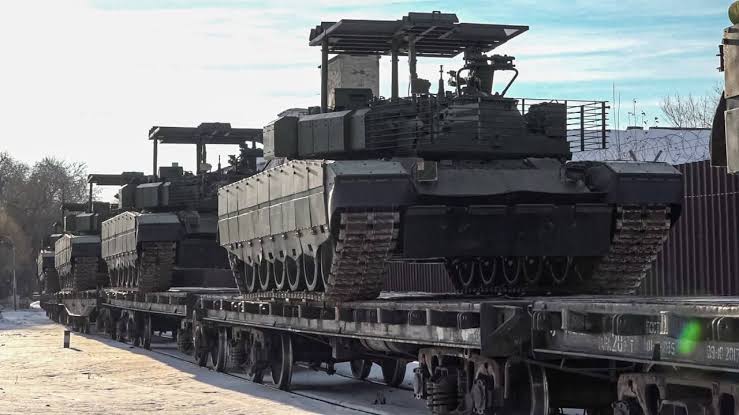

(DEFENCE SECURITY ASIA) — In July 2026, imagery showed a modernized Russian T-80BVM main battle tank travelling aboard a railway flatcar with a redesigned anti-drone cage and renewed side armour, signalling another urgent response to Ukraine’s expanding FPV-drone threat.

The destination remained undisclosed, but the prominent elevated framework covering the turret indicated Russia was moving another updated vehicle toward deployment, evaluation, or distribution within a wartime logistics system increasingly shaped by persistent aerial surveillance and precision attack.

Unlike early improvised grilles, the latest structure appeared more deliberate and integrated, suggesting Russian engineers are converting frontline experience into repeatable protection packages rather than leaving individual crews to fabricate inconsistent solutions near operational areas.

Its appearance followed a May 9, 2026 delivery by Rostec and Uralvagonzavod of upgraded T-90M, T-80BVM, and T-72B3M tanks incorporating reinforced cages, expanded explosive reactive armour, and electronic-warfare improvements derived from combat lessons in Ukraine.

That sequence connects factory output with battlefield adaptation, demonstrating how Russia is using refurbishment lines, stored Soviet-era hulls, and modular upgrades to preserve armoured mass while reducing vulnerability against inexpensive drones attacking comparatively thin upper surfaces.

The T-80BVM combines a gas-turbine powerplant, modernized fire control, Relikt explosive reactive armour, and progressively expanded drone defences, producing a layered survivability concept that addresses both conventional anti-tank weapons and rapidly evolving unmanned threats simultaneously.

Russia’s adaptation does not make the tank invulnerable, because cages and jammers can be bypassed, saturated, damaged, or attacked from unprotected angles, while kinetic penetrators and advanced guided missiles present different mechanisms requiring separate defensive responses.

Nevertheless, the configuration matters internationally because FPV drones have transformed armoured warfare economics, allowing relatively inexpensive weapons to threaten high-value vehicles, interrupt manoeuvre, expose resupply routes, and impose continuous protection demands across the logistics footprint.

For military planners from NATO to the Indo-Pacific, Russia’s evolving “mangal” armour illustrates how legacy tanks can remain operationally relevant through incremental protection, although added weight, restricted visibility, and mechanical interference can diminish mobility and combat effectiveness.

The development also reveals an accelerating contest between drone operators seeking new approach profiles and vehicle designers combining passive barriers, explosive reactive armour, electronic jamming, concealment, dispersion, and tactical movement to break hostile kill chains.

Claims that one protected vehicle survived eighteen FPV strikes are strategically notable but remain insufficient to establish general effectiveness, since warhead type, impact angle, cage condition, jammer performance, crew actions, and post-strike mobility were not independently detailed.

The July sighting therefore represents more than an unusual steel framework: it shows Russia institutionalizing counter-drone adaptation while accepting that survivability now depends upon layered protection, industry, logistics, and continuous redesign; no procurement value was disclosed for conversion into United States dollars or Malaysian ringgit.

T-80BVM Firepower and Gas-Turbine Mobility Sustain Russia’s Armoured Mass

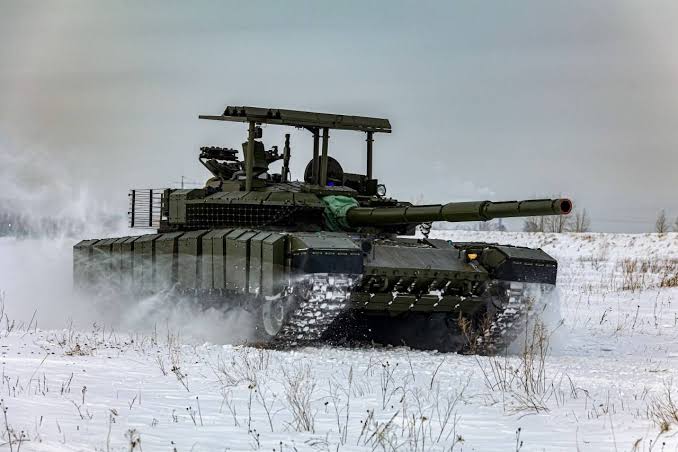

First publicly displayed during the 2017 Zapad exercise and entering Russian Ground Forces service around 2018, the T-80BVM modernizes Soviet-built T-80BV hulls through work led primarily by Omsktransmash within Uralvagonzavod and the wider Rostec structure.

Its 125 mm 2A46M-4 smoothbore gun can fire armour-piercing fin-stabilized discarding-sabot, high-explosive anti-tank, and fragmentation ammunition, alongside 9M119M Refleks guided missiles, giving crews multiple engagement options against armour, fortifications, and selected long-range battlefield targets simultaneously.

A coaxial 7.62 mm PKT machine gun and roof-mounted 12.7 mm weapon provide supplementary firepower, but their defensive value against small drones depends upon detection, reaction time, firing arcs, crew exposure, and ammunition effectiveness considerably.

The GTD-1250 gas-turbine engine produces approximately 1,250 horsepower, supporting a high power-to-weight ratio and road speeds near 70 kilometres per hour for a combat vehicle commonly assessed at roughly 46 tonnes under standard operational loading.

Gas-turbine propulsion offers strong acceleration and dependable cold-weather performance, advantages relevant to rapid repositioning and operations across Russia’s climate, yet higher fuel consumption than diesel-powered T-72 and T-90 families enlarges the operational sustainment burden considerably.

That fuel demand increases tanker movements, storage requirements, maintenance support, and exposure along supply routes, meaning tactical mobility can generate an operational vulnerability whenever Ukrainian reconnaissance and strike systems locate the logistical network sustaining armoured formations.

The three-person crew benefits from improved fire-control equipment, thermal sights including configurations associated with 1PN96MT systems, and nuclear, biological, and chemical protection, although battlefield awareness still depends heavily upon unobstructed sensors and viewing devices externally.

Adding large cage structures can therefore protect vulnerable upper surfaces while simultaneously complicating observation, weapon handling, emergency escape, camouflage, maintenance access, and movement through trees, buildings, bridges, transport wagons, or other restrictive operational terrain substantially.

Russia continues drawing T-80BVM production and upgrade batches largely from stored Soviet-era vehicles, enabling faster numerical regeneration than an exclusively new-build strategy but creating variation in hull condition, component age, and overall modernization standard nationwide.

Alongside T-90M and T-72B3M output, this approach reflects a wartime force-posture calculation that sufficient modernized mass, supported by incremental survivability improvements, may deliver greater battlefield utility than waiting for smaller numbers of entirely new platforms.

From Improvised “Cope Cages” to Factory-Standardized Anti-Drone Protection

Early Russian “mangal” armour appeared around 2021 and 2022 as improvised welded grilles above tank turrets, initially intended to disrupt top-attack threats associated with Javelin missiles, Bayraktar-type drones, and other weapons striking thinner overhead armour.

As FPV drones proliferated across Ukraine, crews expanded these structures using metal latticework, wire mesh, and netting designed to trigger shaped-charge warheads before direct contact with turret roofs, engine decks, hatches, and vulnerable electronic equipment.

The underlying principle is standoff disruption rather than absolute interception, because premature detonation can increase the distance between a shaped-charge jet and primary armour, potentially reducing penetration or redirecting destructive effects away from critical components.

Results vary because cage spacing, material strength, warhead design, impact angle, detonation behaviour, and strike location determine whether the barrier defeats, degrades, or merely delays an attack before damage reaches the protected armoured vehicle directly.

By 2024, factory-standardized cages appeared on newly delivered T-80BVM batches from Omsktransmash, featuring improved mesh screens and nets around turret rears, engine compartments, and other upper surfaces previously protected through uneven frontline field improvisation alone.

Standardization matters because controlled production can improve weld quality, dimensional consistency, mounting strength, repair procedures, crew training, and spare-part availability while allowing engineers to incorporate frontline feedback across successive wartime armoured vehicle delivery batches efficiently.

Developments observed during 2025 and 2026 included reinforced turret structures, broader wire-mesh or slat coverage, additional explosive reactive armour on side skirts and rear areas, and occasional rubber screens or comparable passive protective elements elsewhere.

No single configuration has become permanent, reflecting the speed with which drone operators alter frequencies, warheads, approach altitudes, attack angles, relay methods, and terminal manoeuvres whenever a particular defensive arrangement becomes operationally widespread across sectors.

This iterative pattern transforms armour development from a slow peacetime acquisition cycle into a continuous battlefield engineering process connecting crews, repair facilities, industrial plants, railway transport, testing teams, and procurement authorities through rapid feedback loops.

The photographed July 2026 vehicle consequently suggests the “cope cage” has moved beyond ridicule or emergency improvisation, becoming an institutionalized component of Russian armoured survivability even though its configuration and effectiveness remain operationally conditional today.

Relikt ERA and Internal Layering Address Multiple Attack Mechanisms

The T-80BVM replaces older Kontakt-1 arrays with Relikt explosive reactive armour across the hull front, turret, and side skirts, improving protection against shaped charges and certain kinetic penetrators while expanding coverage around frequently attacked aspects.

Explosive reactive armour operates differently from an anti-drone cage, using energetic tiles to disturb an incoming penetrator or shaped-charge jet, whereas the external framework attempts to trigger, deform, trap, or displace a warhead before armour contact.

Combining both layers creates defensive depth because a drone must first negotiate nets or slats before its warhead encounters reactive and underlying composite armour, increasing the probability that one element disrupts the attack sequence successfully.

Additional side and rear blocks respond to FPV tactics that exploit weaker aspects rather than attacking the heavily protected frontal arc, making all-round coverage increasingly important during manoeuvre, withdrawal, resupply, recovery, and operations inside complex terrain.

Upper-hemisphere protection remains especially difficult because hatches, optics, antennas, engine ventilation, weapon movement, and crew access cannot simply be buried beneath armour without compromising the tank’s operation, maintainability, emergency escape, and wider situational awareness severely.

Designers must therefore balance protection density against mass, centre-of-gravity changes, turret traverse, gun elevation, sensor fields, communications, transport clearances, and the crew’s ability to evacuate rapidly after fire, ammunition damage, or serious mechanical failure occurs.

The refreshed side package visible during the July railway movement indicates that Russian modernization is addressing combined attack geometries, rather than treating the turret roof as the only vulnerability exposed by contemporary drone warfare alone.

Yet cages and reactive armour offer limited protection against armour-piercing kinetic rounds, sophisticated anti-tank guided missiles, tandem warheads, or drones approaching beneath cage edges, confirming that no passive protection package provides comprehensive battlefield immunity independently.

Their real value lies in raising the number, precision, coordination, or warhead sophistication required for a successful kill, potentially forcing Ukrainian operators to expend more drones and reveal additional control positions during repeated attacks prematurely.

For Russia, that exchange supports force preservation only when damaged cages and armour modules can be replaced quickly, making repair capacity, railway distribution, forward workshops, recovery vehicles, and spare stocks as important as protection design.

Volnorez Electronic Warfare Adds an Active Counter-Drone Layer

Many recent T-80BVMs carry the modular Volnorez electronic-warfare suite, commonly using two omnidirectional antennas mounted on the turret to disrupt hostile drone control signals at reported distances of approximately 600 to 1,000 metres around vehicles.

Powered through the tank’s onboard electrical network and installable with limited structural alteration, Volnorez offers a practical upgrade pathway across existing vehicles, allowing active counter-drone protection without waiting for complete redesign or complex hard-kill systems.

Electronic jamming complements physical cages because it attempts to break the guidance link before impact, while passive barriers remain available when interference fails, the drone uses resistant communications, or terminal momentum carries the weapon toward its target.

Operational effectiveness depends upon frequency coverage, power output, antenna placement, terrain masking, friendly-force deconfliction, operator tactics, and the drone’s navigation architecture, making advertised range an incomplete measure of actual protection under demanding battlefield conditions alone.

Drone forces can respond through frequency changes, autonomous terminal guidance, fibre-optic control, pre-programmed routes, relay nodes, or rapid attacks from concealed positions, requiring electronic-warfare software and hardware to evolve alongside physical armour continuously during combat.

Jamming may also interfere with friendly communications or unmanned systems if spectrum management is inadequate, creating a command-and-control trade-off between protecting one vehicle and preserving the wider combat formation’s connectivity, awareness, and coordinated firepower simultaneously.

The combination of Volnorez, cages, Relikt armour, concealment, and movement represents layered defence rather than a single technological solution, distributing risk across electronic disruption, premature detonation, armour resistance, tactical avoidance, and battlefield mobility measures collectively.

Such layering is especially relevant during halts, ammunition loading, refuelling, recovery, and railway unloading, when predictable locations and reduced mobility make tanks attractive targets for reconnaissance drones, FPV teams, artillery, and hostile loitering munitions nearby.

Russia’s ability to install modular jammers across refurbished hulls also demonstrates how open vehicle architectures and available electrical power can accelerate wartime adaptation, although fleet-wide effectiveness depends upon production volume, maintenance competence, and antenna replacement.

For global armies, the lesson is that electronic warfare must accompany armour formations down to tactical level, but spectrum protection cannot replace active air defence, disciplined emission control, camouflage, dispersion, and rapid logistical movement entirely.

Battlefield Effectiveness, Trade-Offs and Global Armoured-Warfare Lessons

Russian crew accounts claim cage-equipped tanks have survived repeated FPV attacks, including one publicized case involving eighteen strikes, but such narratives cannot establish average survivability without verified damage records, weapon identification, repair data, and comparable unprotected vehicles.

Even when a tank remains operational, mission effectiveness may decline through damaged optics, antennas, tracks, external fuel systems, reactive tiles, or cage mounts, meaning survival should not automatically be equated with uninterrupted combat capability afterward.

Large frameworks add mass and aerodynamic resistance while potentially obstructing visibility, restricting turret rotation or gun elevation, complicating maintenance, trapping debris, and increasing the vehicle’s visual profile against persistent airborne reconnaissance and precision targeting systems.

They may also complicate strategic mobility because railway loading gauges, bridge clearances, transporters, workshops, and covered storage were designed around standard vehicle dimensions, forcing units to remove, fold, repair, or reinstall protection during movement repeatedly.

Those logistical penalties explain why protection cannot be judged solely at the point of impact: a cage that defeats one drone but delays deployment, resupply, recovery, or maintenance may transfer risk elsewhere within the operation.

Conversely, inexpensive modular structures can preserve scarce vehicles and trained crews at relatively low industrial complexity, making them attractive when the primary threat consists of numerous low-cost FPV drones rather than exclusively advanced anti-tank missiles.

The T-80BVM’s continuing modernization therefore reflects Russia’s broader strategy of extracting combat value from Soviet-era stocks through selective upgrades, accepting technical compromises while prioritizing volume, repairability, and industrial adaptation speed during prolonged attritional warfare conditions.

Ukraine’s operators will continue adjusting attack angles, control links, payloads, and swarm tactics, ensuring that every defensive improvement produces a countermeasure and preventing either side from securing a permanent technological advantage in the drone contest.

For NATO and Indo-Pacific militaries, the strategic consequence is clear: future armoured formations require organic electronic warfare, overhead protection, short-range air defence, mobile repair, redundant communications, and logistics designed to function beneath continuous drone observation.

The reworked T-80BVM does not restore the tank’s former battlefield dominance, but it demonstrates that armour remains relevant when industry, crews, sensors, protection, electronic warfare, and sustainment are integrated into an adaptable combined-arms survival system.
