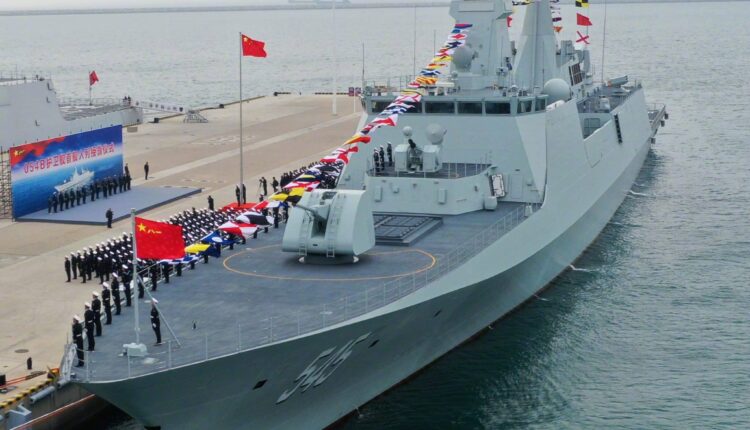

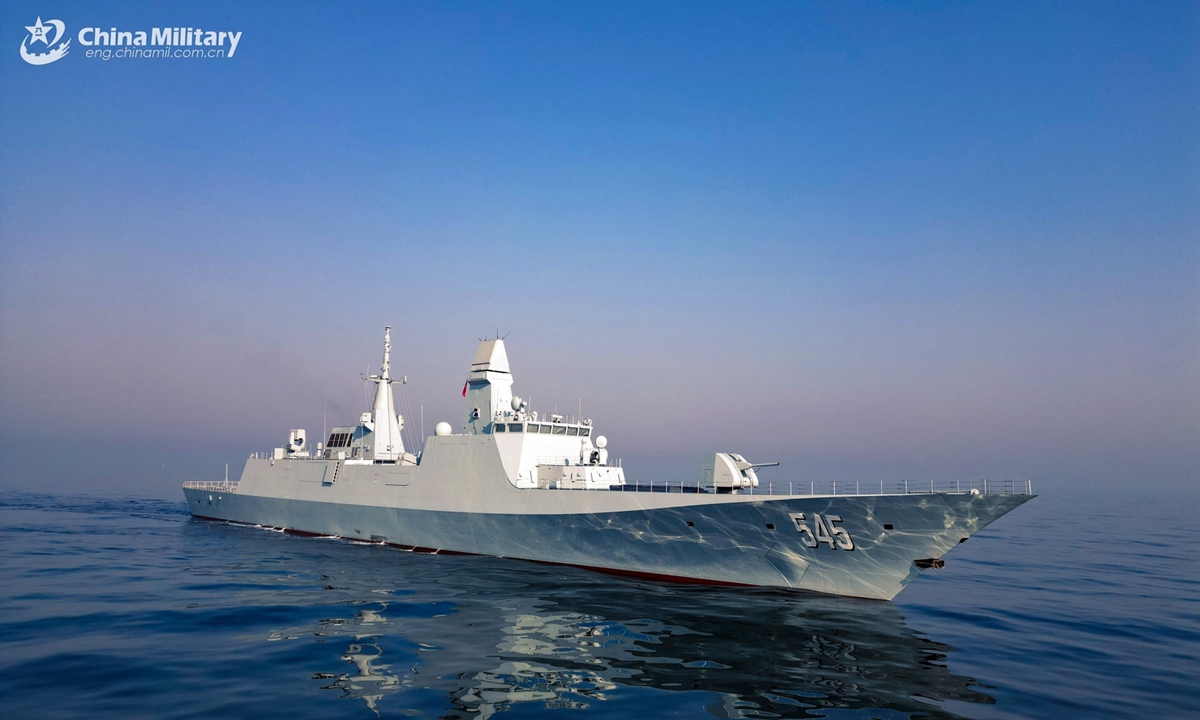

(DEFENCE SECURITY ASIA) — China is reportedly expanding the missile capacity of its latest Type 054B frigates, potentially transforming the People’s Liberation Army Navy’s newest escort into a more heavily armed surface combatant for increasingly contested Indo-Pacific operations.

The third and fourth Type 054B hulls are assessed to feature 48-cell vertical launch systems, representing a 50 percent increase over the 32-cell configuration associated with the first two ships of the class.

Although the PLAN has not disclosed official weapons configurations, visible alterations to deck and superstructure arrangements have generated assessments that later frigates could receive substantially greater missile magazine depth and broader mission flexibility.

The reported enlargement would allow commanders to carry additional surface-to-air, anti-ship and anti-submarine missiles without imposing the severe loadout compromises traditionally confronting frigate-sized warships operating beyond protection from land-based airpower.

A 48-cell Type 054B could therefore sustain defensive engagements longer, generate stronger anti-surface salvos and retain sufficient standoff anti-submarine weapons while escorting Chinese carrier, amphibious or expeditionary formations across distant maritime theatres.

The development would narrow the missile-capacity distinction between China’s newest frigates and some older destroyer designs, strengthening the PLAN’s ability to distribute firepower across more vessels instead of concentrating it aboard limited high-value combatants.

That distribution carries strategic significance because additional launch cells complicate adversary targeting calculations, increase the number of defended naval formations and permit larger Chinese task groups to operate without assigning destroyers to every escort requirement.

The Type 054B, also identified as Jiangkai III, already represents a substantial progression beyond the Type 054A through its larger displacement, quieter propulsion, advanced sensors, expanded aviation facilities and stronger blue-water endurance.

Adding 16 launch cells would reinforce that evolution by connecting enhanced detection, tracking and anti-submarine capabilities with a deeper weapons inventory, thereby improving the ship’s capacity to convert sensor information into sustained combat effects.

The first two frigates were launched during 2023–2024, while subsequent hulls followed with apparent design refinements as China continued parallel construction at Hudong-Zhonghua in Shanghai and Huangpu Wenchong in Guangzhou.

Precise missile compatibility remains uncertain because official specifications are limited, while assessments involving longer-range air-defence weapons, land-attack cruise missiles and future specialised munitions have not been conclusively demonstrated aboard the Type 054B.

Nevertheless, the reported 48-cell configuration signals an operational priority extending beyond ship numbers: creating escorts possessing the magazine depth, aviation footprint and sensor architecture required to maintain Chinese naval power farther from national bases.

A 50 Percent Missile Increase Changes the Frigate’s Combat Economics

Expanding from 32 to 48 vertical launch cells would increase available missile positions by 50 percent, creating operational consequences disproportionate to the physical enlargement because every additional cell can be allocated according to threat conditions.

A 32-cell configuration can provide credible multi-role capability, but allocating sufficient HHQ-16 surface-to-air missiles inevitably constrains space for YJ-18 anti-ship weapons and Yu-8 anti-submarine missiles during demanding escort operations.

An illustrative 32-cell loadout could include 16–20 air-defence missiles, six to eight anti-ship weapons and four to six anti-submarine rounds, leaving limited reserves after repeated engagements against coordinated airborne or maritime threats.

With 48 cells, planners could potentially allocate 24–32 HHQ-16 missiles, eight to 12 YJ-18 weapons and six to eight Yu-8 rounds while preserving flexibility for threat-specific adjustments or future compatible munitions.

These examples remain analytical rather than confirmed operational configurations, because the PLAN does not publish Type 054B missile inventories and actual loadouts would depend upon deployment objectives, intelligence assessments and weapons availability.

The larger magazine nevertheless reduces the tactical opportunity cost attached to every launch, allowing commanders to prosecute submarine contacts or surface targets without immediately weakening the frigate’s capacity to survive subsequent aerial attacks.

Magazine depth is especially important because vertical launch cells generally cannot be replenished safely at sea, forcing a ship that expends substantial ammunition to return to a suitably equipped port or depend upon remaining escorts.

Sixteen additional cells could consequently extend combat persistence before withdrawal becomes necessary, reducing operational disruption and helping Chinese task groups maintain continuous defensive coverage across distant sea lanes or contested approaches.

The expansion also strengthens distributed maritime operations by placing meaningful missile inventories aboard more numerous frigates, potentially compelling opponents to allocate additional surveillance assets and long-range weapons against a wider target set.

China would gain these advantages without converting the Type 054B into a destroyer, preserving a frigate-centred force structure whose procurement, crewing and operating requirements could support greater fleet density than larger surface combatants.

HHQ-16 Air Defence and the Battle for Magazine Depth

The HHQ-16 family is expected to remain the Type 054B’s principal surface-to-air weapon, providing medium-range protection against combat aircraft, helicopters and incoming anti-ship missiles threatening the frigate or its supported formation.

Open-source performance estimates vary substantially by missile variant, placing earlier versions around 40–70 kilometres and suggesting improved derivatives could reach approximately 100–160 kilometres under favourable engagement profiles and supporting sensor conditions.

Reported guidance arrangements include inertial navigation, mid-course datalink updates and terminal radar homing, creating an engagement sequence dependent upon reliable tracking, combat-system integration and sufficient reaction time against low-observable or sea-skimming threats.

A deeper HHQ-16 inventory would not automatically guarantee successful defence, because missile effectiveness remains shaped by radar horizon, electronic warfare, seeker performance, engagement doctrine and the number and geometry of simultaneous incoming threats.

However, additional rounds materially increase the number of engagement opportunities available during saturation attacks, particularly when defensive doctrine requires multiple interceptors against individual targets to achieve acceptable probabilities of destruction.

The Type 054B’s reported active electronically scanned array radar suite could complement that magazine by improving detection, tracking and missile guidance, although publicly available evidence does not establish its precise range or simultaneous-engagement capacity.

Together, improved sensors and 48 launch cells could enable the frigate to contribute more meaningfully to task-group air defence instead of functioning principally as a self-protecting escort dependent upon Type 052D or Type 055 destroyers.

This shift would release larger destroyers for missions demanding their longer-range sensors and heavier weapons, while frigates assume greater responsibility for protecting amphibious vessels, replenishment ships or carrier-group sectors against medium-range threats.

The operational effect would remain bounded by reload limitations and missile availability, because an expanded launcher provides no advantage unless China can manufacture, transport and stock sufficient compatible weapons throughout its naval logistics network.

Consequently, the 48-cell development connects ship design directly with industrial capacity, replenishment planning and forward support infrastructure, making China’s missile production and naval sustainment system as strategically important as the frigate itself.

YJ-18 Firepower Extends the Type 054B’s Offensive Reach

The reported VLS expansion could also permit larger YJ-18 anti-ship missile allocations, enabling the Type 054B to generate more substantial offensive salvos without surrendering the air-defence inventory required to survive within a contested maritime battlespace.

The YJ-18 family is generally associated with a subsonic cruise phase followed by a supersonic terminal sprint approaching Mach 3, combining extended reach with reduced defensive reaction time during the missile’s final approach.

Published estimates place its range between approximately 220 and 540 kilometres depending upon variant and flight profile, while reported warhead weights range from roughly 140 to 300 kilograms, though exact specifications remain unconfirmed.

Its assessed guidance architecture combines inertial navigation and satellite-supported mid-course updates with terminal radar homing, potentially allowing sea-skimming approaches against surface combatants when supported by sufficiently accurate over-the-horizon targeting information.

Long-range missile reach alone does not create an effective kill chain, because the launching frigate requires persistent surveillance, target identification, track continuity and communications resilient enough to update weapons against manoeuvring naval targets.

The Type 054B’s modernised combat-management system and datalinks could connect it with Chinese aircraft, satellites, unmanned platforms, submarines and other warships, extending targeting beyond the frigate’s organic radar horizon if networking performs reliably.

Carrying eight to 12 YJ-18 missiles instead of a smaller allocation would increase salvo density, potentially overwhelming defensive interceptors through coordinated multi-axis attacks launched alongside missiles from destroyers, submarines or maritime strike aircraft.

This capability would strengthen Chinese sea-denial options across the South China Sea, approaches to the First Island Chain and selected Indian Ocean routes, although effective employment would remain dependent upon reconnaissance and communications coverage.

A larger offensive inventory could also allow the frigate to operate more independently during presence missions, but independent deployment would expose limitations in organic sensing, air cover and defensive redundancy compared with a networked task group.

The expanded magazine therefore enhances potential striking power without eliminating operational dependencies, making the Type 054B most consequential when integrated into a wider Chinese reconnaissance-strike architecture rather than evaluated as an isolated missile platform.

Anti-Submarine Warfare, Z-20 Aviation and Undersea Screening

Anti-submarine warfare constitutes another central element of the Type 054B design, because Chinese carrier and amphibious formations require quieter, aviation-capable escorts to counter submarines operating along strategically important chokepoints and oceanic approaches.

The frigate’s larger hull, estimated at 5,000–6,000 tonnes full-load displacement and approximately 150–160 metres in length, provides additional internal capacity for sensors, weapons, fuel, aviation support and improved crew endurance.

Its propulsion arrangement is assessed to employ improved diesel machinery, probably within a combined diesel configuration, with stronger acoustic quieting intended to reduce self-generated noise and improve the performance of passive sonar systems.

Enhanced bow-mounted and towed-array sonars could provide broader submarine-detection opportunities, although their real effectiveness would depend upon ocean conditions, processing capability, operator proficiency and coordination with external airborne or underwater sensors.

The enlarged flight deck and hangar are designed to accommodate the medium Z-20 helicopter, providing greater organic reach, payload and endurance than the smaller Z-9 aircraft carried by most Type 054A frigates.

A Z-20 equipped for anti-submarine operations could extend detection and engagement zones beyond the ship’s immediate sonar coverage, rapidly repositioning sensors or lightweight torpedoes against contacts threatening a high-value naval formation.

Yu-8 or related anti-submarine missiles could complement that aviation capability by delivering lightweight torpedoes approximately 30–50 kilometres or farther toward detected contacts, shortening engagement timelines compared with manoeuvring the frigate into torpedo range.

Allocating six to eight anti-submarine missiles within a 48-cell magazine would permit repeated standoff engagements without reducing air-defence capacity as severely, strengthening the vessel’s value as a dedicated carrier or amphibious-group screen.

The additional cells nevertheless cannot compensate for uncertain contact classification or incomplete underwater surveillance, because launching standoff weapons requires sufficiently accurate target localisation to place the torpedo within an effective acquisition envelope.

By combining quieter propulsion, improved sonar, Z-20 aviation and deeper missile reserves, the Type 054B could strengthen China’s undersea-screening posture while placing heavier logistical demands upon aviation maintenance, sonobuoy stocks, torpedoes and trained personnel.

Blue-Water Force Posture and the Indo-Pacific Balance

China’s Type 054A fleet exceeded 50 vessels, giving the PLAN extensive experience using frigates for regional patrols, escort missions and limited blue-water deployments, while exposing constraints involving sensors, aviation capacity and high-end combat persistence.

The Type 054B addresses those limitations through improved stealth shaping, expanded internal volume, modernised electronic warfare, stronger datalinks and enhanced habitability, creating a platform better suited to prolonged deployments beyond China’s immediate maritime periphery.

A 48-cell configuration would make that blue-water transition more credible because distant forces cannot depend upon rapid port access, nearby shore-based aviation or immediate reinforcement when missile inventories decline during sustained operations.

For carrier strike groups, additional frigate firepower could create layered defensive sectors while preserving Type 055 and Type 052D destroyer magazines for longer-range air defence, strike missions or threats demanding more capable interceptors.

For amphibious formations, the Type 054B could provide air-defence and anti-submarine coverage around comparatively vulnerable transport and landing ships, increasing the number of escorts capable of sustaining operations within missile-contested littoral environments.

Across the Indian Ocean, deeper magazines and enlarged aviation facilities could support longer presence missions, but their effectiveness would remain constrained by access agreements, replenishment ships, maintenance infrastructure and reliable logistics routes.

The programme’s parallel construction at Shanghai and Guangzhou demonstrates industrial capacity to build advanced escorts across multiple yards, potentially accelerating fleet expansion while reducing dependence upon a single production location or specialised workforce.

No publicly confirmed procurement price is available, preventing credible conversion into United States dollars or Malaysian ringgit at USD1 to RM4.00, while speculative cost figures would obscure rather than clarify the programme’s strategic economics.

The reported VLS modification may represent iterative design improvement rather than proof that every future Type 054B will receive 48 cells, and subsequent imagery or service evidence will be necessary to establish configuration consistency.

If verified across serial production, however, the expansion would indicate China is pairing numerical fleet growth with greater per-hull lethality, strengthening missile distribution, escort endurance and operational flexibility across the Indo-Pacific maritime balance.
